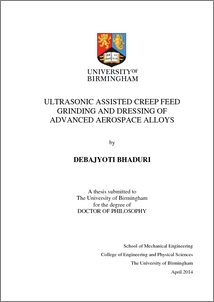

Ultrasonic assisted creep feed grinding and dressing of advanced aerospace alloys

Bhaduri, Debajyoti (2014). Ultrasonic assisted creep feed grinding and dressing of advanced aerospace alloys. University of Birmingham. Ph.D.

[img] Bhaduri14PhD.pdf
PDF - Accepted Version
Restricted to Repository staff only until 10 July 2025.

Download (14MB)

Abstract

The research involves the investigation of hybrid ultrasonic assisted creep feed grinding (UACFG) of advanced aeroengine alloys, in particular Inconel 718, CMSX-4 and gamma titanium aluminide (γ-TiAl). For tests with ultrasonic vibration, workpieces were actuated at a constant frequency (~20kHz) via a specially designed block sonotrode attached to a 1kW piezoelectric transducer-generator system. The trials on nickel based superalloys were carried out using open structured alumina wheels whereas γ-TiAl specimens were machined with conventional silicon carbide and single layer diamond superabrasive wheels. Statistically designed experiments involving variation in wheel speed, table speed, depth of cut, grinding condition and vibration amplitude were employed in mainstream testing. Reductions in grinding force components were typically observed albeit at the cost of higher wheel wear and surface roughness of the ground slots when ultrasonic assisted grinding of nickel alloys. Conversely, UACFG of γ-TiAl exhibited lower grinding wheel wear and workpiece surface roughness. Surfaces ground with the assistance of vibration generally revealed greater side flow/ploughing and overlapping grit marks in comparison to standard creep feed ground specimens. Three dimensional topographic measurement of grinding wheel surface replicas indicated that ultrasonic vibration led to an increase in the number of active cutting points on the wheel.

Type of Work: Thesis (Doctorates > Ph.D.)
Award Type: Doctorates > Ph.D.
Supervisor(s):
Supervisor(s)EmailORCID
Soo, Sein LeungUNSPECIFIEDUNSPECIFIED
Aspinwall, David K.UNSPECIFIEDUNSPECIFIED
Licence:
College/Faculty: Colleges (2008 onwards) > College of Engineering & Physical Sciences
School or Department: School of Engineering, Department of Mechanical Engineering
Funders: None/not applicable
Subjects: T Technology > TJ Mechanical engineering and machinery
URI: http://etheses.bham.ac.uk/id/eprint/5415
